Description

Features:

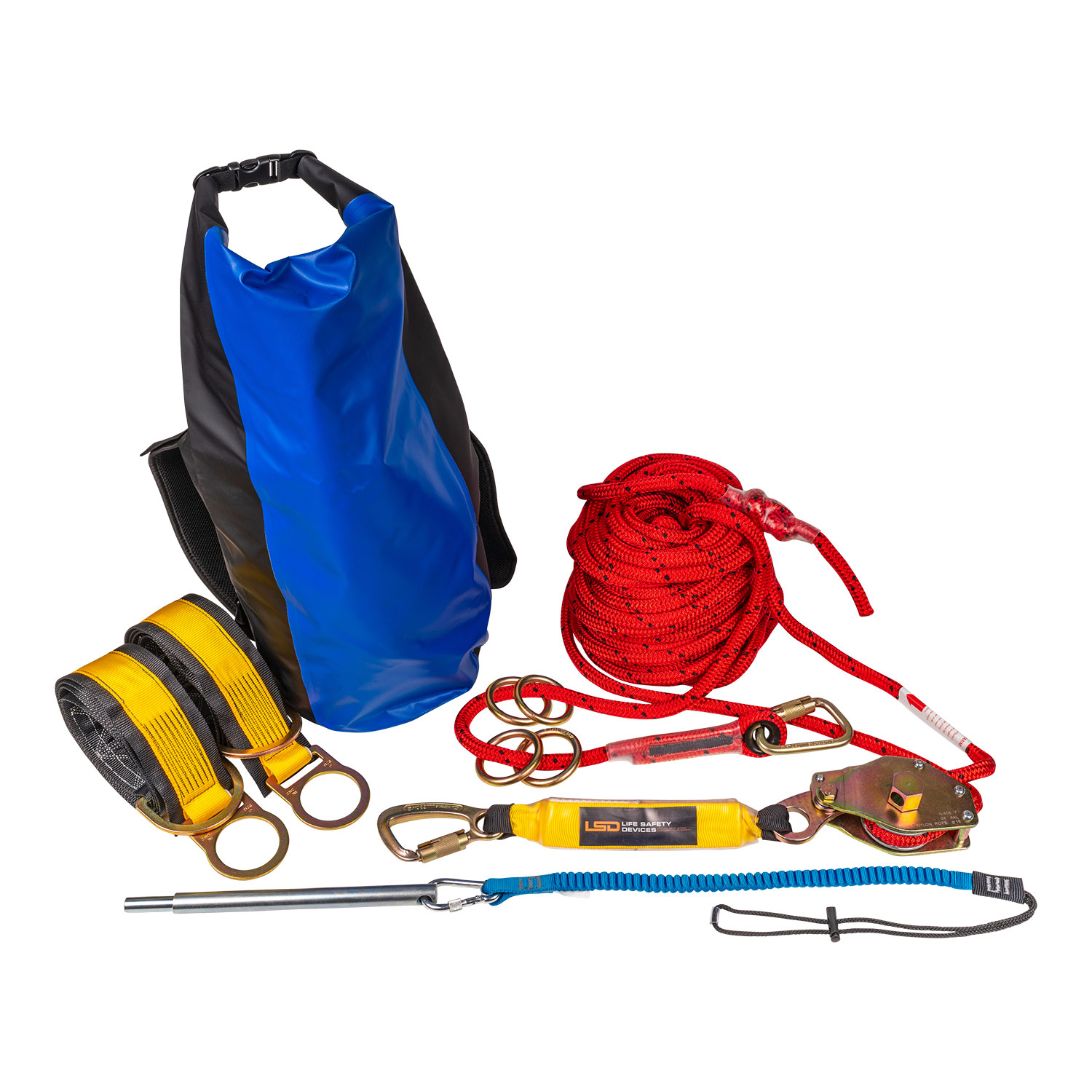

• 4-person horizontal lifeline kit including:
• 2 qty – 6 ft. cross arm anchor straps
• One (1) tension adjustment tool
• One (1) horizontal lifeline with 16mm diameter double braided rope (low elongation)
• One (1) 30L water proof bag with shoulder straps
• Four (4) steel O-rings for attachments points
• Steel rope tension adjuster with built in tension indicator
• Equipped with a heavy duty shock pack which provides a 2:1 safety factor 22.2kN (5,000 lbs.) anchor point
• Tool Tether Max. Capacity: 15 lbs. which complies to ANSI /ISEA 121-2021

User Weight Capacity:

ANSI 130-310 lbs. (140.6kg)

Design:

• Span Length 15-100ft.

Materials:

• Water proof bag
  Volume: 30L
  PVC laminate material
  6ft cross arm anchor strap
  Large D-ring material: Forged Steel
  Regular D-ring material: Stamped Steel

Size:

Part #	Size
HLL04	Span Length 15-100ft.

Standards:

Meets or Exceeds: OSHA 1926.502



---
