Description

Features:

• One snap hook and one O-ring
• Single Leg
• 3/4” Hook

Design:

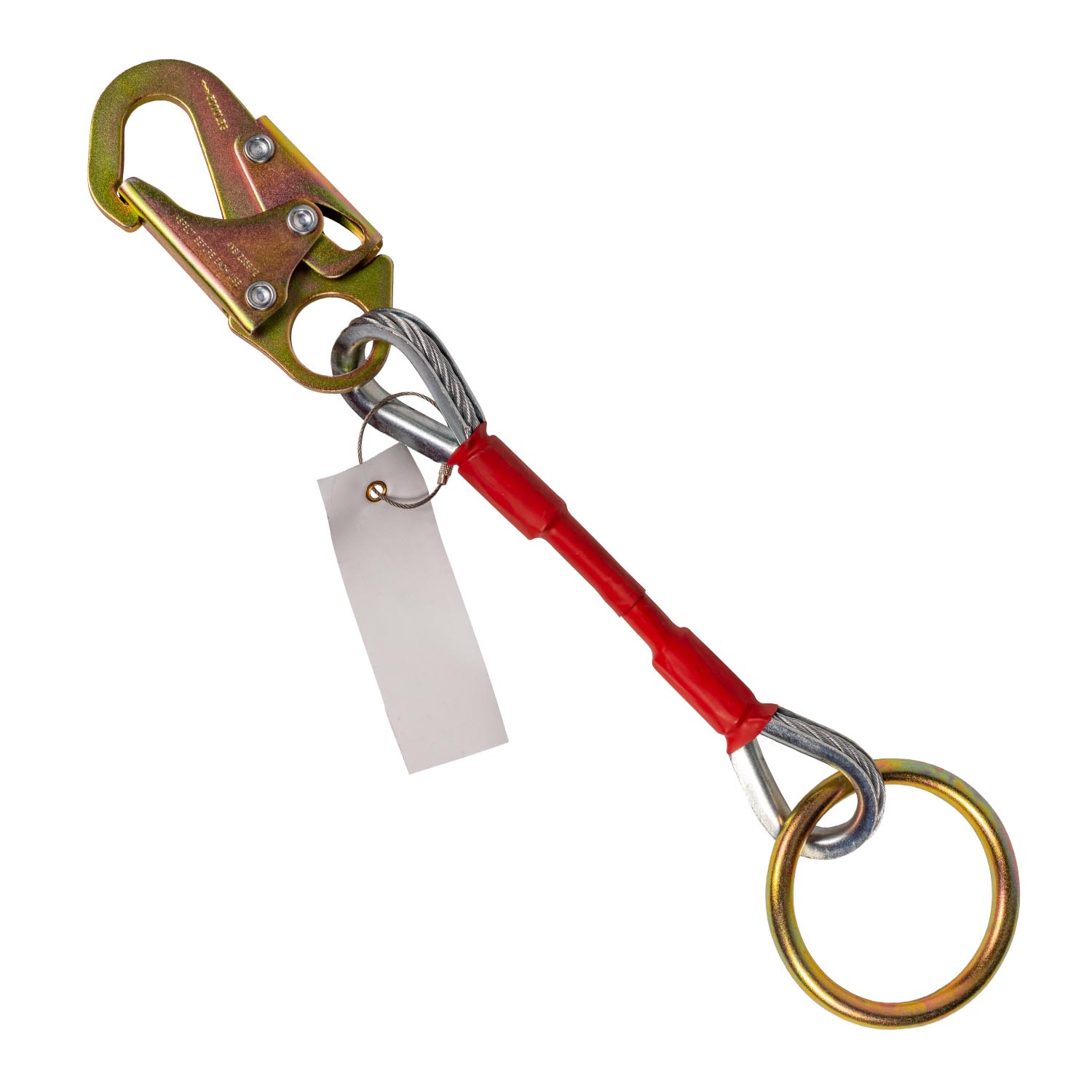

D-ring extender with 0.25” 7×19 aircraft steel cable

User Weight Capacity:

ANSI 130-310 lbs. (140.6kg)

Webbing:

• Material: 100% Polyester
  Size: 1.18” Width
• Min Breaking Strength: 7,500 lbs.

Metal Materials:

• Snap Hook
  Material: Stamped Steel
  Gate strength: 3,600 lbs.
  Min Breaking Strength: 5,000 lbs.
  Open Width: 0.79” (20mm)
• O-ring
  Material: Forged Steel
  Min Breaking Strength: 5,000 lbs.

Size:

Part #	Size
DEL02	12”

Standards:

Meets or Exceeds: ANSI Z359.3-2019



---
