Description

Features:

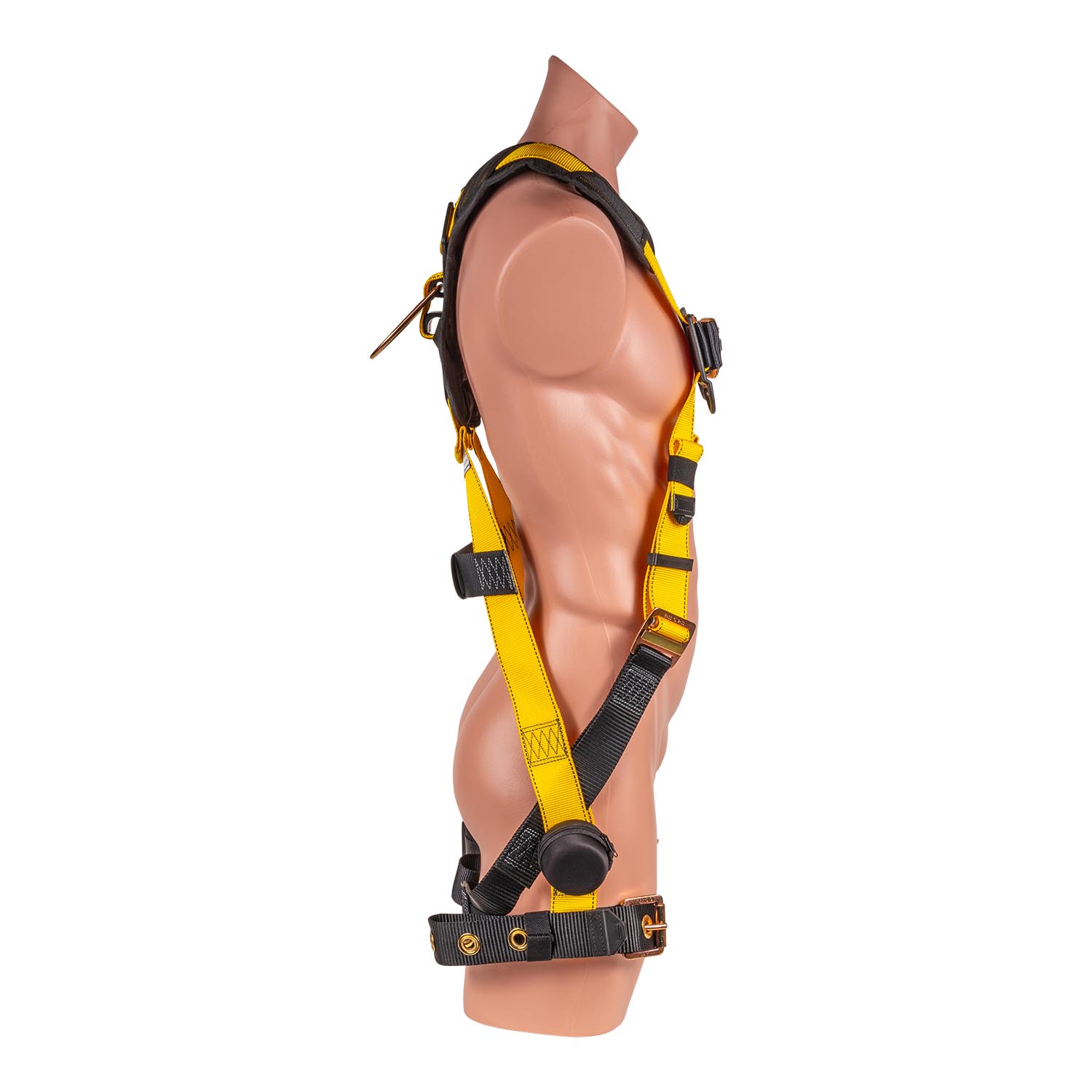

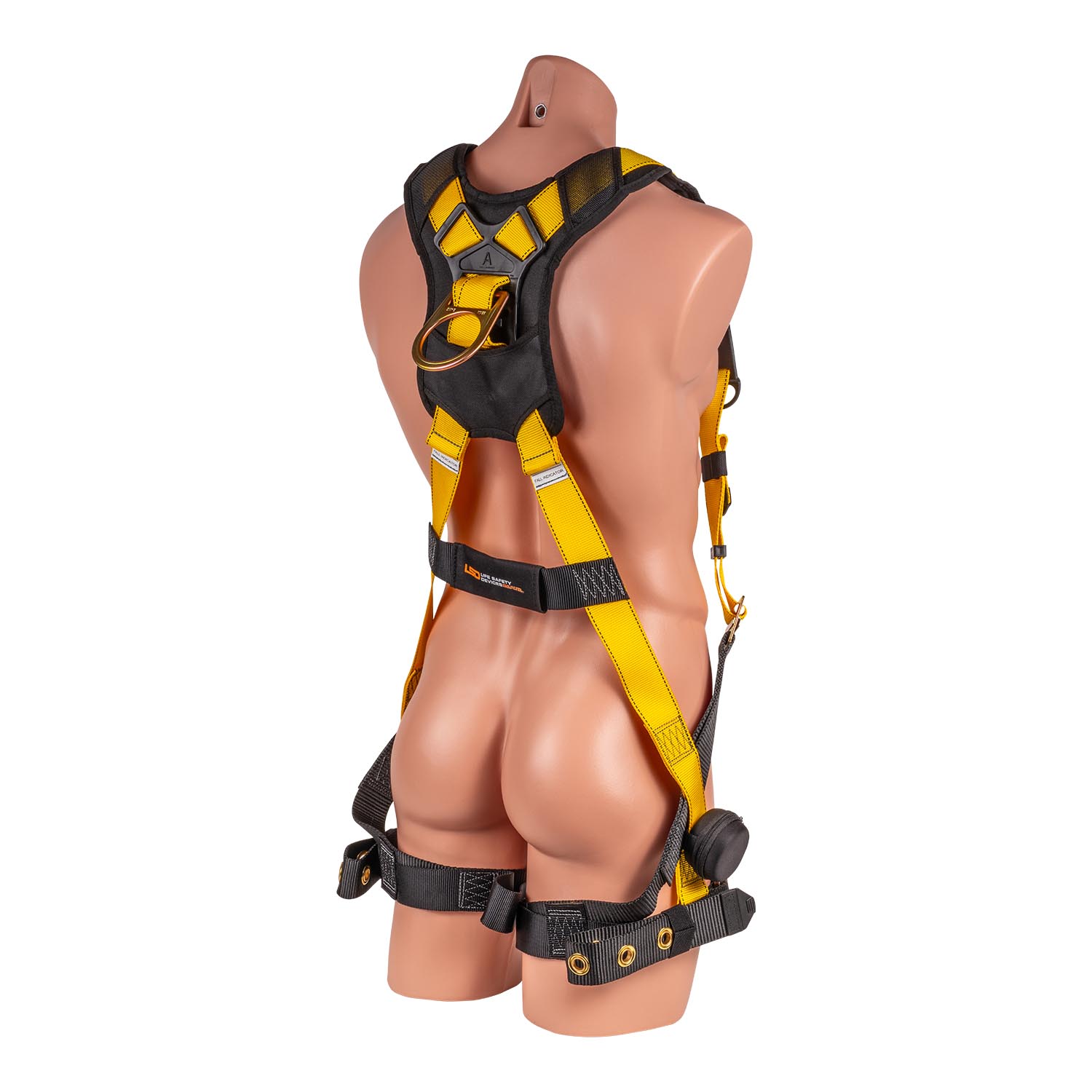

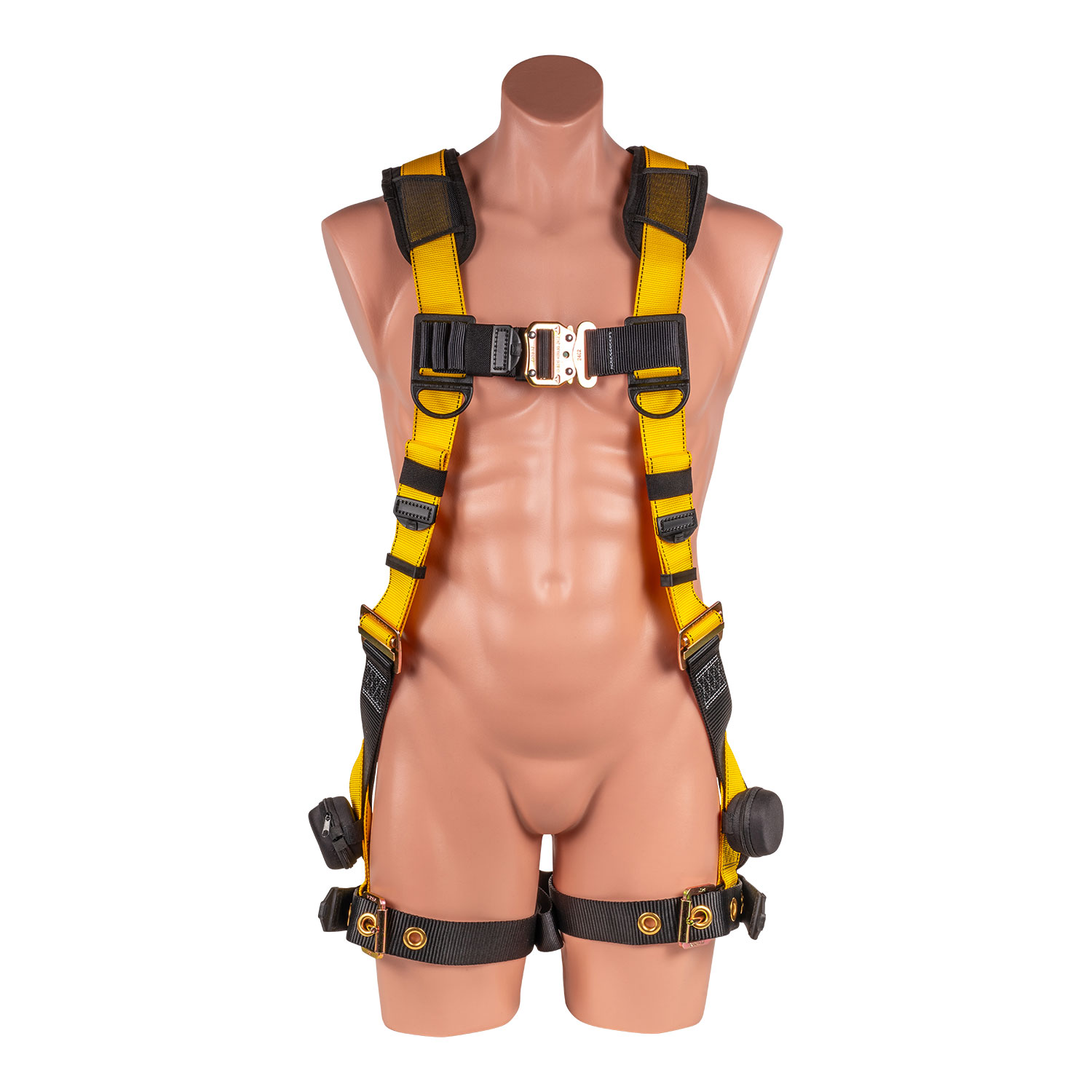

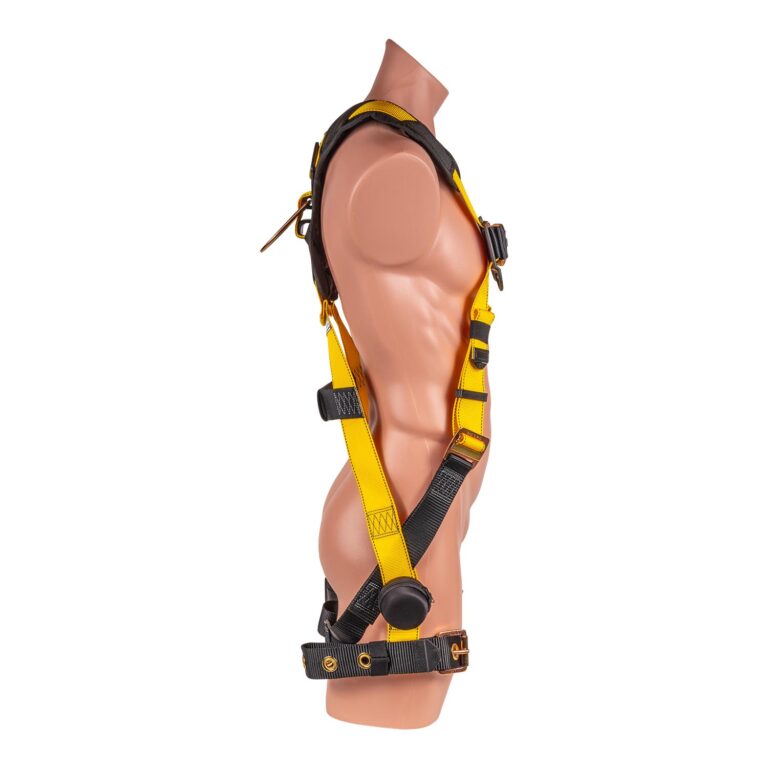

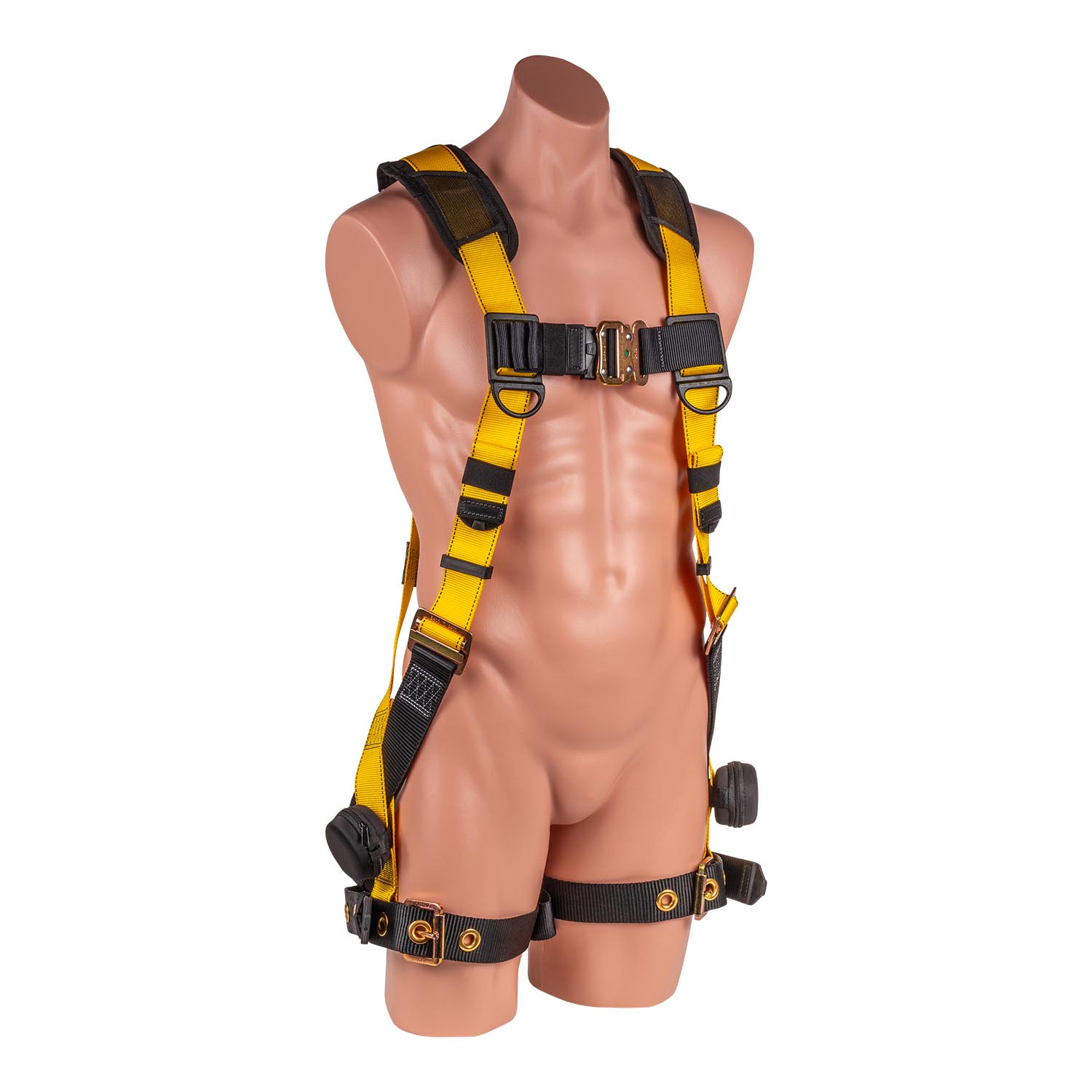

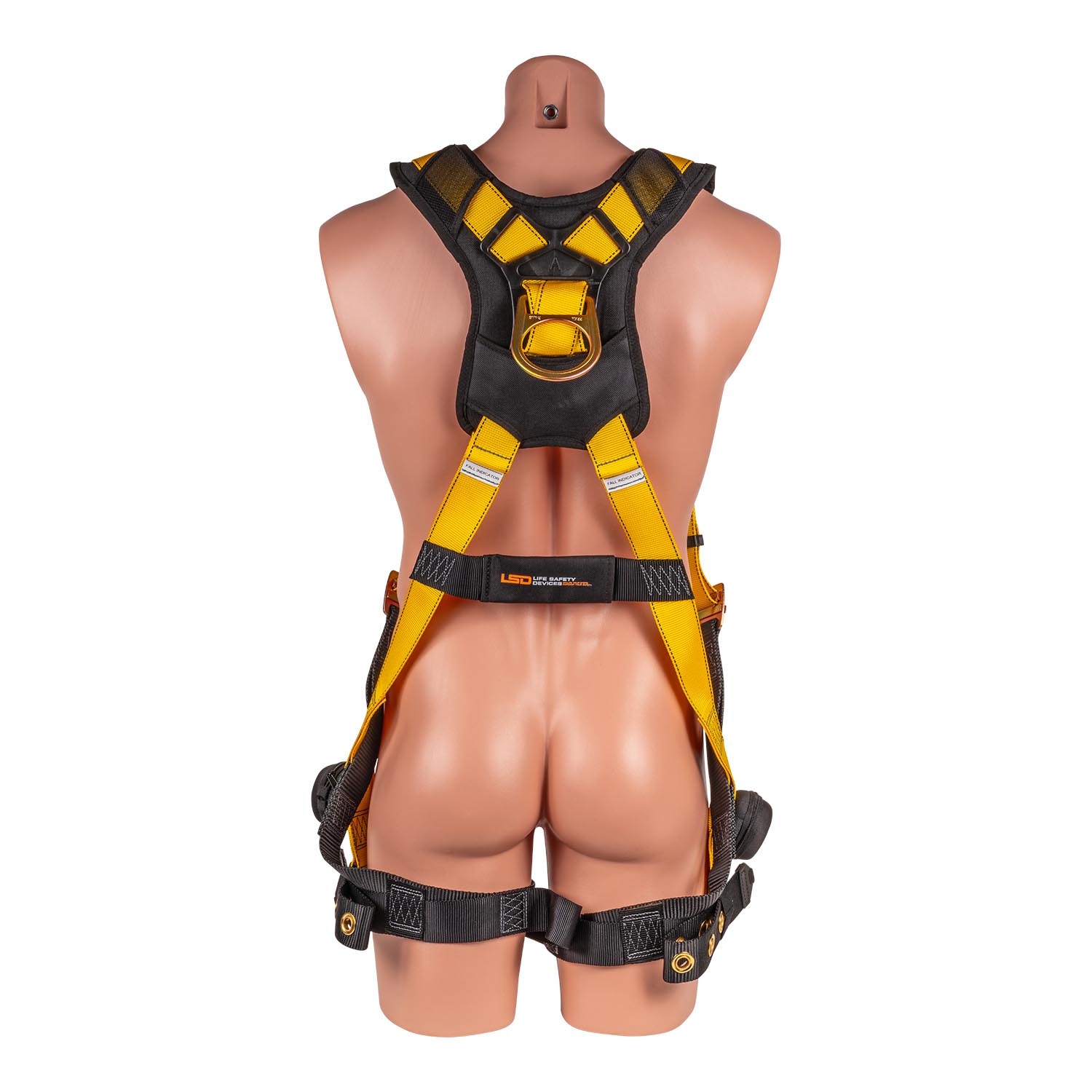

• • Yellow Full body harness with 5 adjustment points: shoulder straps, chest strap & leg straps
  • Dorsal D-ring with SRL Plate
  • Adjustable tongue buckle H-Style leg straps
  • 2 lanyard keepers, breaking under 120 lbs.
  • 2 fall indicators on the back torso straps
  • Trauma Relief Straps Installed
  • Quick Connect Chest Buckle
  • Vented Back/Shoulder Pad

User Weight Capacity:

ANSI 130-310 lbs. (140.6kg)

Webbing:

• Width: 1.75”
• Material: 100% polyester
• Min Breaking Strength: 6,000 lbs.

Metal Materials:

• Dorsal D-ring
  Material: Forged Steel
  Min Breaking Strength: 5,000 lbs.
• Quick Connect, Mating and Tongue Buckles
  Material: Stamped Steel
  Min Breaking Strength: 4,000 lbs.
• Eyelet Adjuster Buckle
  Material: Brass H65
  Inner Diameter: 10mm

Size:

Part #	Size
HH503	Universal Size (M-XL)

Standards:

Meets or Exceeds: ANSI Z359.11-2021



---

Resources

Technical Data Sheet



User Instruction Manual
